Product Description
Considered one of the most powerful servos in the micro class, the HS-65 is offered with a choice of “shock resistant” Metal or “zero wear” Karbonite gears. The 65 series features a top-ball bearing for long life and positive centering, 31 ounces/inches of power at 6 volts and is an excellent choice for higher performance micro helicopters, electric park flyers, and 1/18 scale cars.
Features
- Premium Feather Servo
- Strong Karbonite Gears
- Ball Bearing-Supported Output Shaft
- High Torque and High Speed
HS-65HB Servo Specifications
Performance Specifications | |
Operating Voltage Range (Volts DC) | 4.8V ~ 6.0V |
Speed (Second @ 60°) | 0.16 ~ 0.13 |
Maximum Torque Range oz. / in. | 22 ~ 26 |
Maximum Torque Range kg. / cm. | 1.6 ~ 1.9 |
Current Draw at Idle | 7.7 mA |
No Load Operating Current Draw | 220 mA |
Stall Current Draw | 1,200 mA |
Dead Band Width | 5 µs |
Physical Specifications | |
Dimensions (Inches) | 0.92 x 0.45 x 0.94 |
Dimensions (Metric) | 23.6 x 11.6 x 24.0 |
Weight (Ounces) | 0.39 |
Weight (Gram) | 11.2 |
Circuit Type | HT7003 Analog SMT |
Motor Type | 3 Pole Metal Brush Neodymium |
Gear Material | Karbonite |
Bearing Type | Top Ball Bearing |
Output Shaft (type / Ømm) | Feather 15 / 8 |
Case Material | Plastic |
Dust / Water Resistance | N / A |
Connector Gauge (AWG) / Strand Count | 28 / 20 |
There are no related hopups for this product.
There are no related parts for this product.

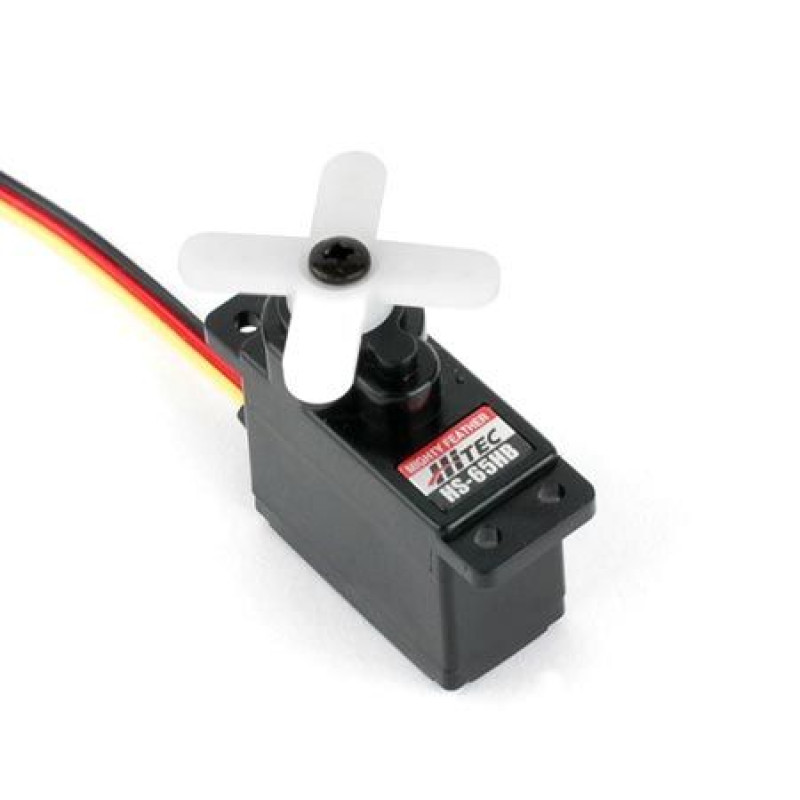

HS-65HB Micro Servo Universal, 4.8V 1.8kg/0.14 sec, 6.0V 2.2kg/0.11 sec, 23.6x11.6x24mm, 11.2g by Hitec
- Brand: HITEC
- Categories:
- - Micro/Mini Servos
- -
- - Servo ALL
- Product Code: HS-65HB
- Availability: In Stock
